Telfer builds rim, mortise, and shortened rim replacement cylinders with a solid brass body, nickel-plated end cap, and a 5-pin ANSI Yale-equivalent keyway. Pick the key code you already run and every cylinder on the order opens with the same key.
Keyed alike means cylinders that share a key code open with the same key. Rekey a building without a locksmith visit: order everything in your code.
Rim for outside key control, mortise for mortise locksets, IKC shortened rim for Detex ECL-230D exit control locks.
Five codes per line: KA-1, KA-2, KA-3, KA-5, KA-12. Already running Telfer? Order the same code and your existing keys work.
Every code links straight to its Amazon listing. Prime shipping, Amazon returns, two keys in every box.

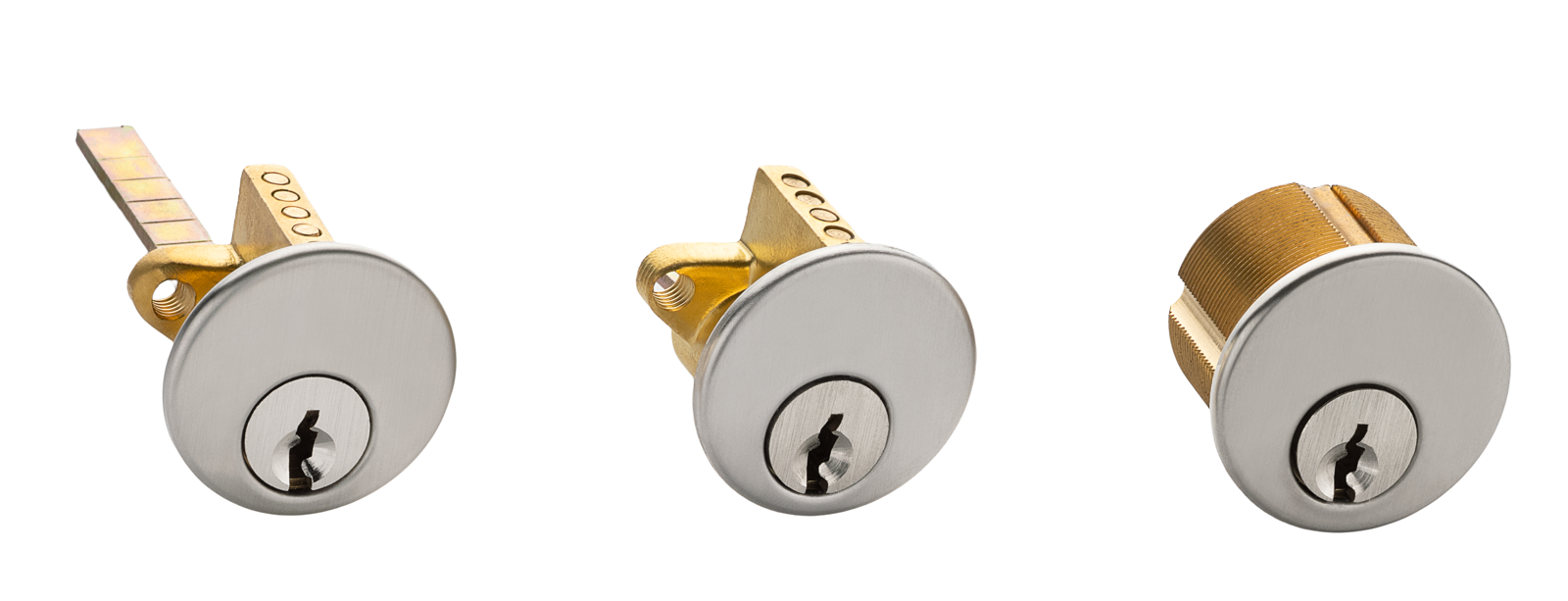

Same brass core, same keyway, three form factors. Open a line to pick your key code.

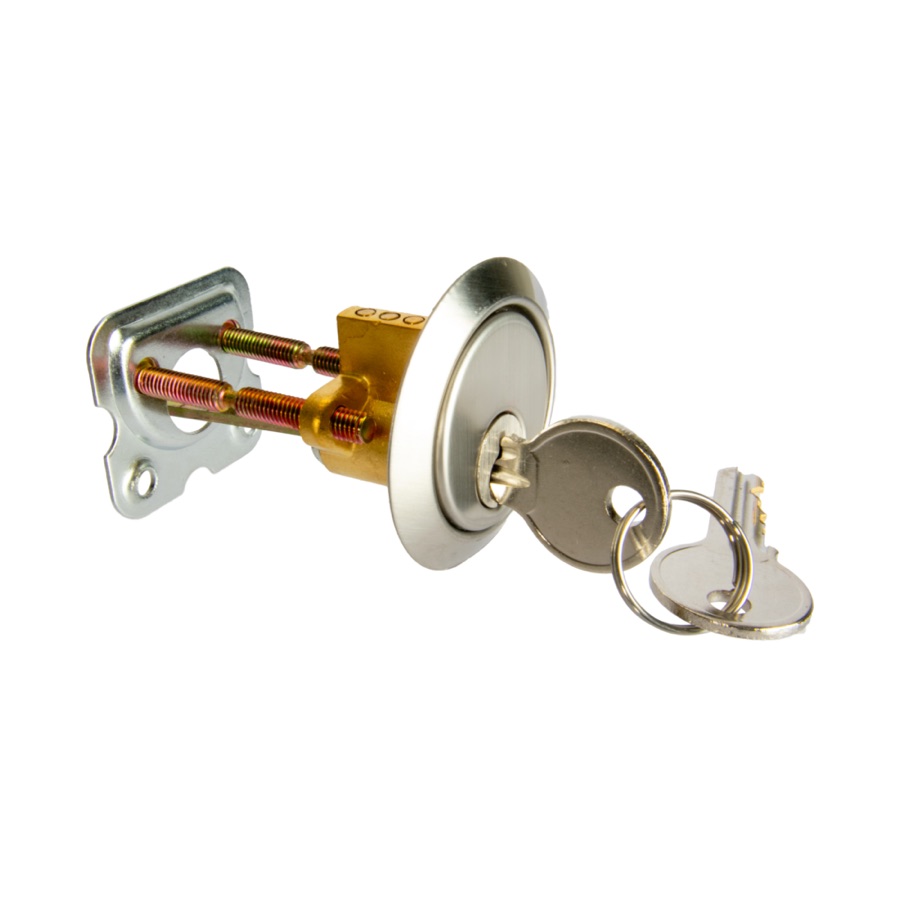

TEL-445K-R
Classic rim cylinder for outside key control. Two keys, mounting bracket, and collar in the box.
KA-1KA-2KA-3KA-5KA-12

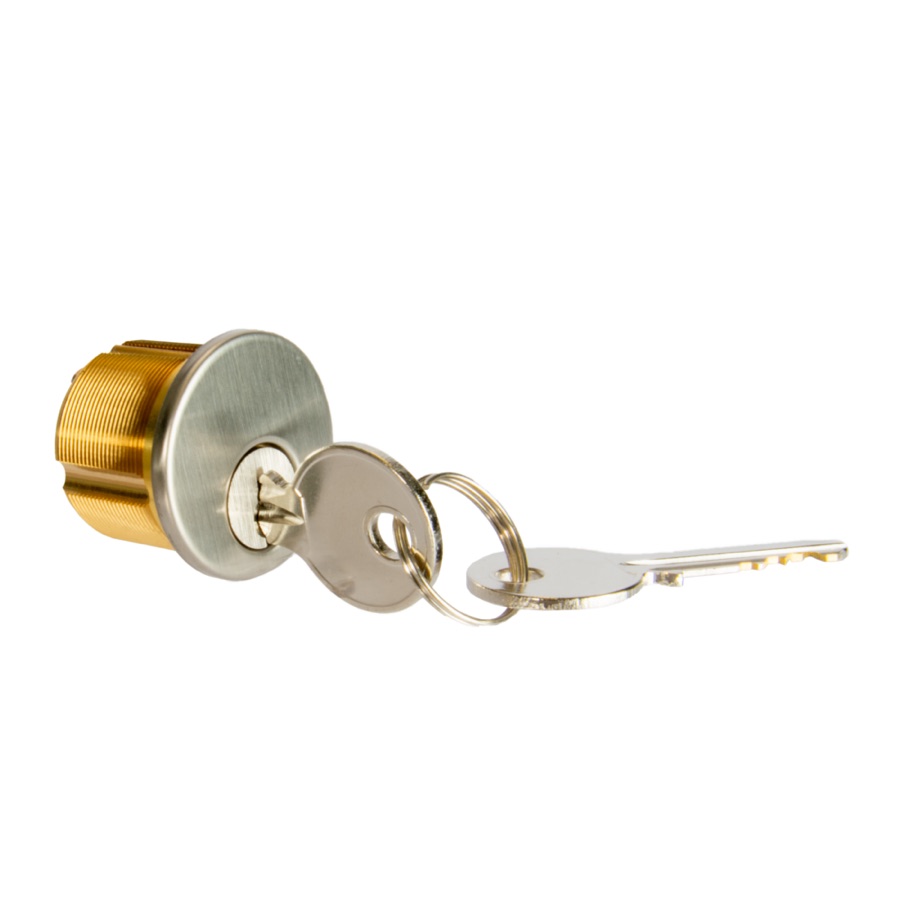

TEL-445K-M
For mortise locksets. Two keys and a Yale-equivalent cam in the box.
KA-1KA-2KA-3KA-5KA-12
TEL-445K-R-IKC
Shortened rim cylinder engineered to fit the Detex ECL-230D exit control lock. Two keys and collar in the box.
KA-1KA-2KA-3KA-5KA-12| Attribute | Rim | Mortise | IKC shortened rim |
|---|---|---|---|
| Body | Solid brass, nickel-plated end cap | Solid brass, nickel-plated end cap | Solid brass, nickel-plated end cap |
| Keyway | 5-pin ANSI, Yale-equivalent | 5-pin ANSI, Yale-equivalent | 5-pin ANSI, Yale-equivalent |
| In the box | 2 keys, mounting bracket, collar | 2 keys, Yale-equivalent cam | 2 keys, collar |
| Key codes | KA-1 / 2 / 3 / 5 / 12 | KA-1 / 2 / 3 / 5 / 12 | KA-1 / 2 / 3 / 5 / 12 |
| Package | 83 × 43 × 43 mm | 45 × 45 × 37 mm | 50 × 43 × 43 mm |
| Fits Detex ECL-230D | No | No | Yes |
The standard rim cylinder is too long for the ECL-230D housing. Telfer's IKC shortened rim cylinder is cut to fit it, keyed alike with the rest of your Telfer hardware.
See the IKC cylinder →
